Qubic System

QS-CH1 3 DOF Motion Platform

QS-CH1 3 DOF Motion Platform

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out

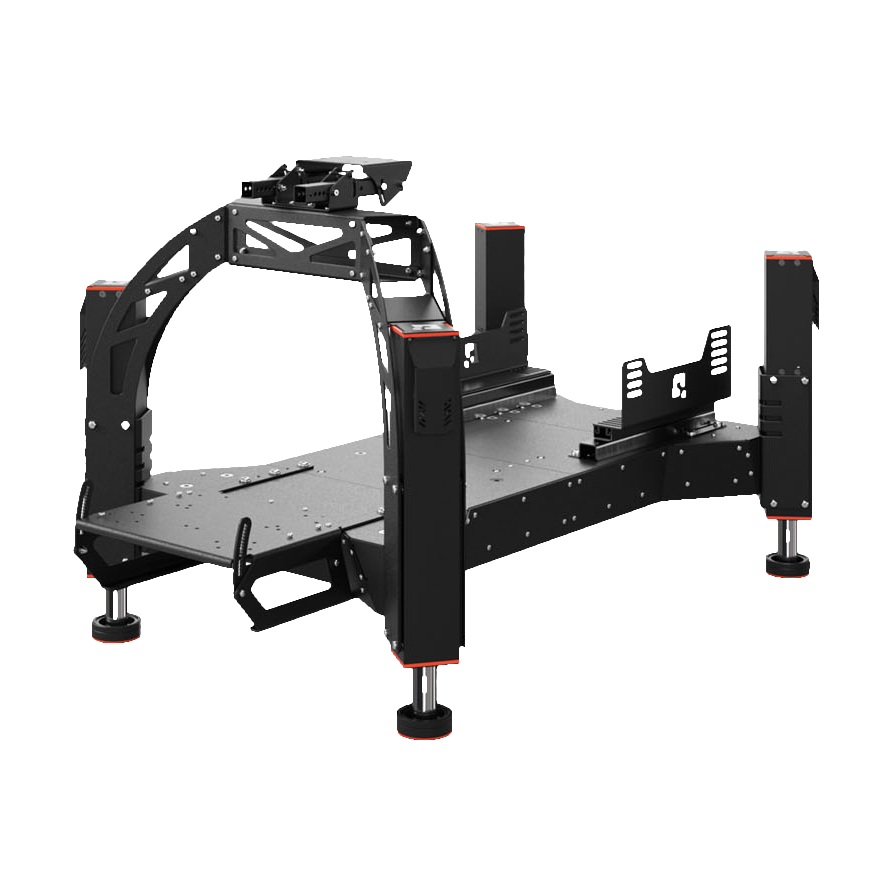

The Qubic QS-CH1 is crafted to deliver an immersive training experience across a range of transportation modes. Leveraging the power of linear actuator technology, the relatively compact motion cockpit seamlessly translates real-world stimuli into the virtual environment, greatly enhancing immersion.

With 4 actuators in a 3 DOF configuration, the QS-CH1 is capable of producing meticulously accurate vibrations that mirror real-life driving conditions, including the nuances of curves and racetrack obstacles. Its lightweight and streamlined design not only ensures easy portability but also simplifies maintenance and allows for versatile installation options.

  • General Specifications
  • Hardware
  • Software

QS-CH1 Product Card



QS-CH1 User Manual

The QS-CH1 is transported in a specially adapted transport box.


The QS-CH1 Full Set consists of:



           2x QS-220-PL motion set:



  • 4x QS-L1 linear actuator with stabilization plate
  • 2x QS-SB2 power cabinet
  • 1x QS-SBML-2 motion lock cable (up-link/down-link) – 2 meters long
  • 1x Ethernet RJ-45 cable – 2 meters long
  • 1x Power cable



           1x QS-MC6 controller set:



  • 1x M10 USB controller
  • 1x QS-SBML-1 motion lock with additional cable
  • 1x QS-MBT-1 M-BUS terminator (RJ45 plug with resistor)
  • 1x USB cable (mini)
  • 1x Ethernet RJ-45 cable – 3 meters long


        1x QS-CH1 base motion system:



  • 1x QS-CH1 main frame
  • 4x actuator mounting bracket
  • 1x steering wheel mounting bracket
  • 1x pedals mounting bracket
  • 1x seat mounting bracket
  • 1x seat adjustment bracket




QubicManager by Motion Systems:
The interface between advanced hardware and immersive gaming.



Overview:
Even the most advanced hardware needs effective software. QubicManager is a specialized software tailored for the platform, "click and play" compatible with major racing and flight PC titles. Regularly updated, it offers motion adjustments, extensive diagnostics, and a library of predefined profiles. Simple yet powerful, adjust motion intensity, bumps, roll, pitch, and more at the click of a button. Plus, the software license is free-of-charge.



Key Features:

  1. Motion Cueing: World-class algorithms and "washout filters" bridge the gap between simulation and reality.
  2. Integrated Gaming: Supports popular racing, flight games, and professional simulation applications.
  3. VR Headway Technology: Advanced formulas ensure immersive VR experiences and combat VR sickness.
  4. Motor Control: Specialized for simulation with rapid signal preprocessing and actuator-specific vibration capabilities.
  5. Motion Sickness Compensation: Real-time telemetry data from the game's engine enhances user experience.
  6. Tactile Audio Feedback: Utilize tactile transducers for added cockpit effects.
  7. Full Control: Motion Systems can modify the control algorithm and introduce new features swiftly.
  8. Developer Tools: Motion SDK available for enhanced software integration.
  9. And many more enhancements in the pipeline!
